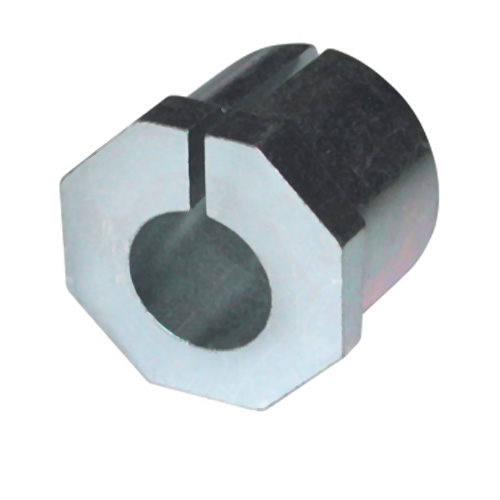

This sleeve will easily change Camber and/or Caster .25°. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve and install a zero degree sleeve (23139) to determine the required change, then install the correct degree sleeve. To split camber and caster adjustment, rotate sleeve 45°.

• Easily change caster / camber or both at the same time
• Clear Zinc coating for corrosion resistance
• Recommended Tools: 77880 - Sleeve Puller
• Front Adjustment Range: Camber/Caster ±0.25°
• Required: 1 per wheel
